10t/H Gold Ore Grinding Ball Mill 1830mm Diameter 24r/Min

1830*3000 Gold Ore Grinding Ball Mill

Hengyang ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics.

Ball Mill Working Principle

When the materials processing, they are transferred to the grinding chamber through the quill shaft uniformly. Firstly the centrifugal force caused by rotation of barrel brings the steel balls to a certain height, then the steel balls impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board ,lastly the grinding process is finished.

Ball Mill Technical Details:

Diameter: 1830mm

Length: 3000mm

Rotary Speed: 24r/min

Ball load (grinding media): 18t

Feeding size: ≤25mm

Motor: 132kw

Gearbox: ZD40

Output size: 0.074-0.4mm

Capacity: 5-10t/h

Weight: 28t

Shell Material: Q235

10t/H Gold Ore Grinding Ball Mill

1830mm Diameter Grinding Ball Mill

24r/Min Grinding Ball Mill

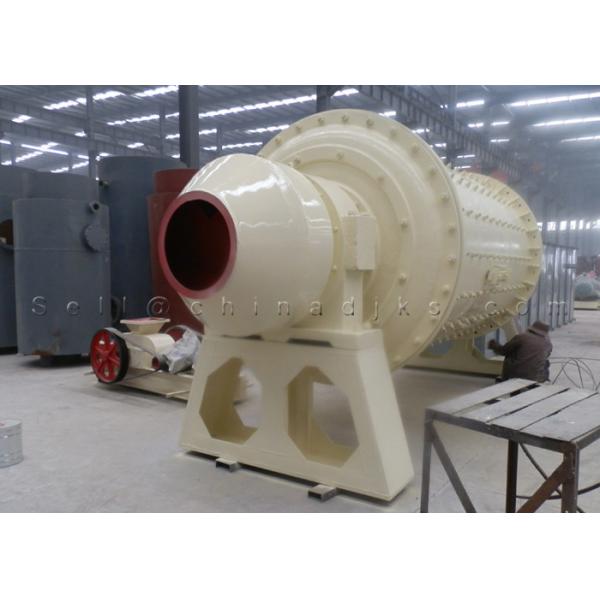

10t/H Gold Ore Grinding Ball Mill 1830mm Diameter 24r/Min Images
